Sub-Zero Repair Examples from Mill Valley & Southern Marin

A homeowner in Corte Madera usually asks the question these examples answer: when a control board, thermistor or display alarm lights up, does it mean a huge bill? Often not. The repairs below show how a careful diagnosis keeps many jobs small, with the evidence we collect on every visit.

The most common story here is a fresh-food section warm while the freezer still holds. In plain terms, the freezer holding is good news: it usually rules out the compressor and points at airflow or defrost. The limitation worth stating: every one of these started as an unknown, and the outcome only became clear after on-site readings — we don’t publish a verdict we reached before measuring.

What these explain

Common Sub-Zero repair paths in Southern Marin, each using the same evidence trail we keep on every visit: temperature readings, condenser/evaporator photos, model-tag proof and OEM part evidence.

At a glance

Three scenarios, three lessons

Diagnostic example overview
AreaSymptomOutcome
LarkspurWarm fresh-food, freezer fineEvaporator fan + coil clean; no sealed-system work
BelvedereSealed-system suspicionVerified leak, repaired under EPA rules
Mill Valley canyonSlow / hollow iceInlet valve and filter; water-side fix

Examples

How each diagnostic path is documented

Larkspur — common: warm fresh-food side

FAN + COIL

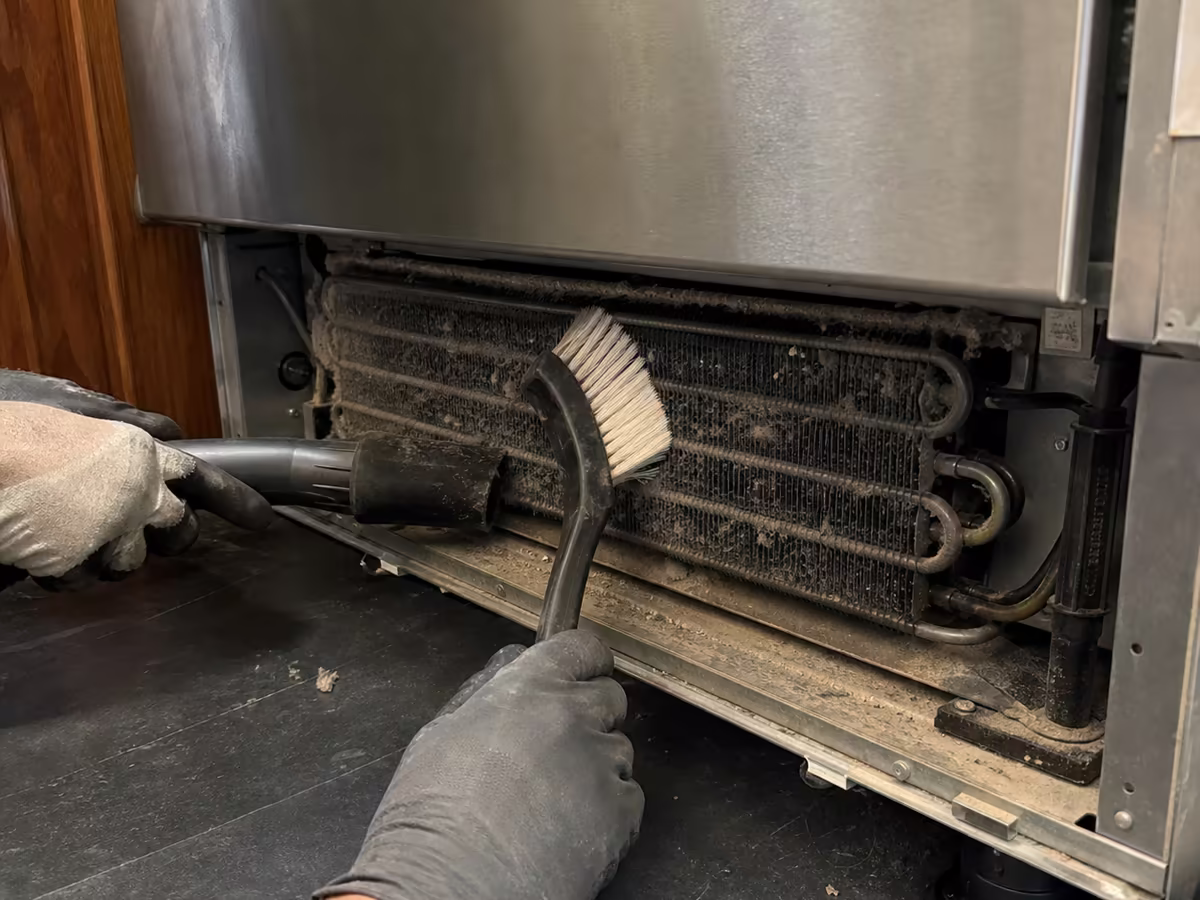

Dust-packed Sub-Zero condenser before cleaning in a Larkspur home
SERVICE IMAGEDust-packed Sub-Zero condenser before cleaning in a Larkspur home
case-larkspur-before.avif
ISSUEBefore: airflow choked at the condenser.
Thermometer reading 37 degrees after the Larkspur repair
SERVICE IMAGEThermometer reading 37 degrees after the Larkspur repair
case-larkspur-verify.avif
CHECKAfter: 37°F, verified.
Problem
Fresh-food section drifting warm through the afternoon; freezer holding fine.
Diagnosis
Condenser packed with dust and pet hair; evaporator fan motor failing — confirmed by readings, not assumed.
Repair
Full coil clean and an OEM evaporator fan, serial-matched.
Verification
Fresh-food section returned to 37°F, logged over a full cycle before leaving.
Parts
OEM evaporator fan motor.
Timeline
One visit, parts on the van.
Learned
The freezer holding was the clue — it kept this out of sealed-system territory entirely.

Belvedere — complex: sealed-system

SEALED-SYSTEM
Manifold gauges on a Sub-Zero sealed system in a Belvedere home
SERVICE IMAGEManifold gauges on a Sub-Zero sealed system in a Belvedere home
case-belvedere-before.avif
ISSUEBefore: gauges confirming the leak.
Stable temperature readings after the Belvedere sealed-system repair
SERVICE IMAGEStable temperature readings after the Belvedere sealed-system repair
case-belvedere-verify.avif
CHECKAfter: stable across both compartments.
Problem
Both compartments slowly warming; a previous opinion blamed the compressor outright.
Diagnosis
Gauge readings confirmed a refrigerant leak — a genuine sealed-system fault, verified before any claim.
Repair
Leak located and repaired, system recovered and recharged under EPA Section 608 rules.
Verification
Temperatures stable across both compartments over an extended cycle.
Parts
OEM sealed-system components; proper refrigerant.
Timeline
Two visits: diagnosis, then the repair.
Learned
Even the ‘big’ repair deserves verification first — but when it is real, it is handled by the book.

Mill Valley canyon — maintenance: ice maker

WATER-SIDE
Hollow Sub-Zero ice cubes from a canyon home before repair
SERVICE IMAGEHollow Sub-Zero ice cubes from a canyon home before repair
case-icemaker-before.avif
ISSUEBefore: hollow, undersized cubes.
Solid full Sub-Zero ice cubes after the inlet valve repair
SERVICE IMAGESolid full Sub-Zero ice cubes after the inlet valve repair
case-icemaker-verify.avif
CHECKAfter: full, solid cubes.
Problem
Ice maker slow, jammed and producing hollow cubes for weeks.
Diagnosis
Weak inlet valve and an overdue filter starving the mold — fill volume measured to confirm.
Repair
OEM inlet valve and a fresh filter; fill volume re-checked.
Verification
Full, solid cubes on the next cycle, confirmed before leaving.
Parts
OEM inlet valve, water filter.
Timeline
One visit.
Learned
Hollow cubes are almost always a water-volume problem, not a cooling failure.

How we document a repair

The same record on every visit

Each repair is backed by the record we leave with every customer — the model-tag image, compartment temperature readings, condenser and evaporator photos, and the OEM part that went in. The method is always the same: measure first, match the serial, quote plainly, then verify the temperature or fill volume after the repair. That is how a warm cabinet or a slow ice maker gets fixed once, with proof you can keep.

Reviews

What Mill Valley Sub-Zero owners say

★★★★★

“Fresh-food side on our 632 built-in climbed to 49°F in Homestead Valley while the freezer held; another company wanted a new compressor. They cleaned the salt-dusted condenser and swapped a failing evaporator fan for $415, and it has held 37°F since.”

— Daniel R., Homestead Valley 94941
★★★★★

“Our 424 wine column drifted to 58°F against a 55°F setpoint after the fog rolled into Strawberry. They logged a probe over a full cycle and replaced a zone thermistor and damper for $410 — the collection was never at risk.”

— Priya M., Strawberry 94941
★★★★★

“Built-in freezer door in Cascade Canyon was sweating and growing a frost line in the damp. They corrected the alignment and fitted an OEM gasket for $640, photographing every reading before and after.”

— Ellen T., Cascade Canyon 94941

Recognize your symptom in one of these? Book a window.

Have the model number and symptom ready. We’ll bring the likely part for your Sub-Zero line and document the repair the same way you see here.

Questions, answered for Mill Valley

Frequently asked

Do these examples reflect real Sub-Zero repairs?

Yes. They are representative Mill Valley Sub-Zero repairs shown with the same evidence we keep on every visit: model-tag proof, temperature readings and photos of the part replaced. Customer names and addresses are kept private.

Does a sealed-system suspicion always mean replacement?

No. A verified leak can sometimes be repaired under EPA rules. We confirm with gauges before recommending anything, and replacement is only a fair conversation on very old cabinets.

Why is the freezer holding such a useful clue?

If the freezer stays cold while the fresh-food side warms, it usually rules out the compressor and points at airflow, the evaporator fan or defrost — a smaller, cheaper class of repair.

Can you document my repair the same way?

Yes. Every visit produces the same evidence trail: temperature readings, condenser/evaporator photos, model-tag proof and OEM part evidence, which you keep.

How much do the repairs in these examples typically cost?

They span the usual Mill Valley ranges: a condenser-and-fan fix around $230–$720, a wine sensor or damper $280–$640, a gasket $420–$880, and sealed-system work $850–$3,750 after proof.

Do you serve my neighborhood with these repairs?

Yes — these examples come from across Mill Valley and Southern Marin, including Homestead Valley, Strawberry, Cascade Canyon, Tam Valley, Tiburon and Corte Madera.
